What makes Liquid Silicone Rubber (LSR) a game-changer in modern manufacturing? This versatile material is known for its strength, flexibility, and biocompatibility. LSR injection molding revolutionizes production processes across industries by offering precision and durability. In this post, you'll learn why LSR is the go-to choice for critical applications, from medical devices to automotive components.
What is Liquid Silicone Rubber (LSR)?
Liquid Silicone Rubber (LSR) is a highly versatile and widely used elastomeric material. It's an inorganic polymer that has gained popularity in various industries due to its unique properties and processing capabilities. LSR is one of the advanced injection molding technologies that offers numerous advantages in manufacturing.
The Composition of LSR
LSR is composed of four main elements: silicon (Si), oxygen (O), carbon (C), and hydrogen (H). The backbone of LSR is formed by alternating silicon and oxygen atoms, creating a siloxane chain. This siloxane bond is what gives LSR its distinctive properties.
LSR can be further categorized into two types based on the curing process: platinum-cured and peroxide-cured. Platinum-cured LSR offers several advantages over peroxide-cured LSR, such as:
Key Properties of LSR
LSR boasts a wide range of properties that make it an ideal choice for numerous applications. Some of its key properties include:
Tasteless and Odorless: LSR has no smell or taste, making it suitable for food and baby products.
Mechanical Properties: It boasts excellent elongation, tear strength, and flexibility, which contribute to its wide use in seals, gaskets, and membranes.
Durability: LSR can withstand extreme temperatures, from -60°C to 180°C, making it perfect for outdoor and automotive applications.
Chemical Resistance: This material resists water, oxidation, acids, and alkalis. It is easily sterilized through methods like steam, gamma radiation, and ETO.
Biocompatibility: LSR is hypoallergenic and safe for contact with human tissue. It doesn't support bacterial growth.
Electrical Insulation: With outstanding insulating properties, LSR is perfect for use in electrical components, even in extreme environments.
Transparency and Pigmentation: LSR is naturally translucent but can be easily pigmented to create custom-colored products, making it flexible for aesthetic applications.
These properties make LSR an excellent choice for injection molding, often outperforming traditional 3D printing methods in certain applications.
| Property | Description |
| Biocompatibility | Compatible with human tissue and body fluids, hypoallergenic, resistant to bacterial growth |
| Tasteless and Odorless | No taste or odor, can meet FDA standards for food, beverage, and baby products |
| Durability and Flexibility | Withstands harsh conditions and extreme temperatures, excellent elongation, high tear and tensile strength, great flexibility |
| Chemical and Temperature Resistance | Resists water, oxidation, acids, alkalis; maintains properties from -60°C to 250°C |
| Electrical Insulation | Excellent insulating properties, performs at high and low temperatures |
| Transparency and Pigmentation | Inherently translucent, natural white color, can be pigmented for custom colors |
The unique properties of LSR make it an ideal material for various types of injection molds, enabling the production of complex and precise parts. When combined with advanced injection molding machines, LSR can be used to create a wide range of products with exceptional quality and consistency.

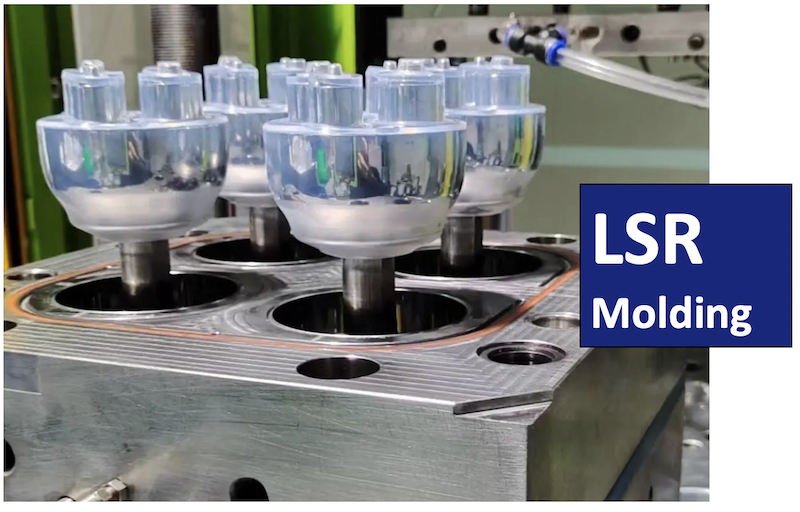

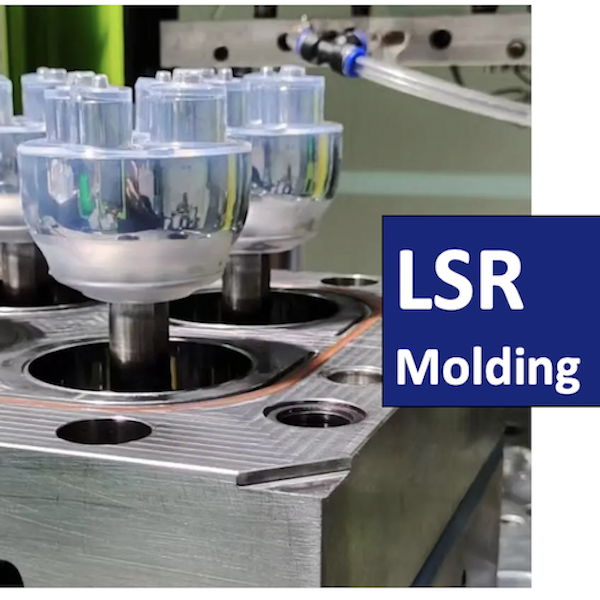

Liquid Silicone Rubber Injection Molding Process
The Liquid Silicone Rubber (LSR) injection molding process is a highly efficient method for producing intricate, high-quality silicone parts. Let's take a closer look at the steps involved in this process.
Overview of the LSR Injection Molding Process
Creating the LSR molding tool
Preparing the material
Injecting the material into the mold
Curing process
Cooling and demolding
Post-molding secondary operations
Step 1: Creating the LSR Molding Tool
The first step is to create a molding tool that can withstand the high temperatures and pressures of the LSR injection molding process. CNC machining is often used to fabricate these tools, as it ensures high precision and durability.
The tool can also be polished to achieve various finishes, depending on the desired surface texture of the final product. Understanding the different parts of an injection mold is crucial for creating an effective LSR molding tool.
Step 2: Preparing the Material
LSR is a two-part system consisting of a base and a catalyst. These components are typically mixed in a 1:1 ratio using a metering and mixing equipment.
Color pigments and other additives can be added at this stage to achieve the desired color and properties of the final product.
Step 3: Injecting the Material into the Mold
Once the LSR is mixed, it's heated and injected into the mold cavity under high pressure through a nozzle. The material fills the mold, taking on the shape of the cavity. This step is a crucial part of the overall injection molding process.
Step 4: Curing Process
After the mold is filled, heat is applied to initiate the curing process. This converts the liquid silicone rubber into a solid part.
The curing time depends on the size and complexity of the part being produced.
Step 5: Cooling and Demolding
After curing, the LSR products are cooled before being removed from the mold. Automated systems are often used to separate the parts from the mold, ensuring consistency and efficiency.
Step 6: Post-molding Secondary Operations
Once the parts are demolded, they may undergo various post-molding secondary operations, such as:
Slitting
Printing
Marking
Assembling
Post-curing
These operations help to refine the parts and prepare them for their intended use.
| Step | Description |
| 1. Creating the LSR Molding Tool | CNC machining for high-temperature resistance, polishing options for various finishes |
| 2. Preparing the Material | Two-part system (base and catalyst), metering and mixing in a 1:1 ratio, adding color pigments and additives |
| 3. Injecting the Material into the Mold | Heating and high-pressure injection through a nozzle, filling the mold cavities |
| 4. Curing Process | Conversion of liquid silicone rubber into a solid part, curing time based on part size and complexity |
| 5. Cooling and Demolding | Cooling the LSR products, removal and separation from the molds using automated systems |
| 6. Post-molding Secondary Operations | Slitting, printing, marking, assembling, post-curing, etc. |
The LSR injection molding process is a precise and efficient way to produce high-quality silicone parts for various industries and applications. This process is made possible by advanced injection molding machines designed specifically for handling liquid silicone rubber.
Why Choose Liquid Silicone Rubber Injection Molding?
When it comes to producing high-quality silicone parts, Liquid Silicone Rubber (LSR) injection molding is the go-to choice for many industries. But what makes this process so appealing? Let's explore the key advantages of LSR injection molding.
High Precision and Complex Design Capabilities
One of the most significant benefits of LSR injection molding is its ability to produce intricate parts with tight tolerances. This process can handle delicate part geometries, such as thin walls and tight radii, with ease.
The low viscosity of LSR allows it to flow into even the most complex mold cavities, ensuring precise replication of the desired design. This level of precision is comparable to some of the advantages of CNC machining.
High Volume Production with Consistent Quality
LSR injection molding is an automated process, making it ideal for mass production. The repeatability of this process ensures that each part is produced with consistent quality, reducing the risk of defects or variations.
Moreover, the closed-loop nature of the injection molding process minimizes the risk of contamination during production, ensuring a clean and safe final product. This is particularly important in industries like medical device manufacturing.
Superior Mechanical Properties
Parts produced through LSR injection molding exhibit exceptional mechanical properties, including:
Durability
Flexibility
Elongation strength
High tear resistance
Tensile strength
These properties make LSR parts suitable for a wide range of applications, from medical devices to automotive components
Low Environmental Impact
LSR injection molding is an environmentally friendly process. It produces minimal waste, as the material is precisely metered and injected into the mold.
Furthermore, silicone is recyclable, reducing the overall environmental impact of the production process.
Enhanced Safety in Production
The automation of the LSR injection molding process reduces the need for human intervention, enhancing safety in the production environment. Advanced injection molding machines and automated handling systems minimize the risk of burns or other injuries associated with handling hot materials.
| Advantage | Description |
| High Precision and Complex Design Capabilities | Produces intricate parts with tight tolerances, handles delicate part geometries (thin walls, tight radii) |
| High Volume Production with Consistent Quality | Automated process ideal for mass production, ensures consistent quality, reduces risk of contamination |
| Superior Mechanical Properties | Durability, flexibility, elongation strength, high tear resistance, tensile strength |
| Low Environmental Impact | Minimal waste production, recyclable material |
| Enhanced Safety in Production | Automated handling, reduced human contact with hot materials |
Applications of LSR Injection Molding
Liquid Silicone Rubber (LSR) injection molding is a versatile process that finds applications across various industries. From medical devices to automotive components, LSR parts are everywhere. Let's take a closer look at some of the key areas where LSR injection molding is making a significant impact.
Medical and Healthcare Industry
In the medical and healthcare sector, LSR injection molding is a go-to choice for producing a wide range of products, such as:
Medical devices
Seals and gaskets
Surgical instruments
Drug delivery systems
Fluid management systems
Biotechnology components
The biocompatibility, chemical resistance, and ability to withstand sterilization make LSR an ideal material for medical applications. It ensures patient safety and product reliability. The manufacturing of medical device components often relies heavily on LSR injection molding.
Automotive Industry
LSR injection molding is also widely used in the automotive parts and components manufacturing. Some common applications include:
Seals and connectors
Assemblies
Electronic covers
A/C vent cushions
Windshield wiper blades
The durability and resistance to extreme temperatures make LSR parts suitable for the demanding conditions in automotive environments. They can withstand exposure to UV, ozone, and various chemicals.
Industrial Sector
In the industrial sector, LSR injection molding is used to create:
Seals and gaskets
Strain relief devices
Grommets
These parts are crucial for protecting sensitive components and ensuring smooth operation in industrial settings. The excellent sealing properties and durability of LSR make it a reliable choice.
Electronics
LSR injection molding is also prevalent in the electronics industry, where it's used to produce:
The electrical insulation properties and ability to create intricate designs make LSR ideal for electronic components. It helps to protect sensitive parts from moisture, dust, and other environmental factors.
Consumer Products
Finally, LSR injection molding is used to create a variety of consumer and durable goods, such as:
Kitchenware
Wristwatches
Wearable technology
Toys and pacifiers
Infant bottles
Personal care items
The non-toxic, odorless, and tasteless nature of LSR, along with its durability and ease of cleaning, make it a perfect choice for products that come into contact with food or skin.
| Industry | Applications |
| Medical and Healthcare | Medical devices, seals, gaskets, surgical instruments, drug delivery systems, fluid management systems, biotechnology components |
| Automotive | Seals, connectors, assemblies, electronic covers, A/C vent cushions, windshield wiper blades |
| Industrial | Seals, gaskets, strain relief devices, grommets |
| Electronics | Keypads, connectors, seals, water-tight gaskets, buttons, switch pads |
| Consumer Products | Kitchenware, wristwatches, wearable technology, toys, pacifiers, infant bottles, personal care items |
As you can see, the applications of LSR injection molding are diverse and far-reaching. The unique properties of LSR, combined with the precision and efficiency of the injection molding process, make it a valuable technology for numerous industries.
Design and Manufacturing Considerations
When it comes to Liquid Silicone Rubber (LSR) injection molding, there are several design and manufacturing considerations to keep in mind. These factors can greatly influence the success of your project. Let's dive into the details.
Part Design Rules for Liquid Silicone Injection Molding
Designing parts for LSR injection molding is quite different from designing for thermoplastics. Here are some key differences:
Simplified Design Requirements: LSR parts have simpler design requirements compared to thermoplastics. The flexibility of LSR allows for easier removal from the mold, reducing the need for complex ejector pin placement and draft angles.
Flexibility in Ejector Pin Location and Draft Angles: Due to the inherent flexibility of LSR, the location of ejector pins and the use of draft angles are less critical. This gives designers more freedom in part design.
Ability to Have Protruding Undercut Areas: LSR's flexibility also allows for the creation of parts with protruding undercut areas. These features can be easily demolded without the need for side actions.
Importance of Proper Sealing at the Parting Line: However, the low viscosity of LSR can lead to leakage at the parting line if not properly sealed. Ensuring a good seal is crucial for preventing flash and maintaining part quality.
Metering and Mixing Considerations
LSR injection molding requires precise metering and mixing of the two-part LSR system (base and catalyst). The metering unit must accurately dispense the components in a 1:1 ratio, and the mixing process must ensure a homogeneous mixture. Proper metering and mixing are essential for achieving consistent part properties. This process is typically handled by specialized injection molding machines.
Working Principle Differences Compared to Thermoplastic Injection Molding
Unlike thermoplastic injection molding, where the material is heated to a molten state and then cooled in the mold, LSR is injected into a heated mold for curing. The mold temperature is typically between 150°C and 200°C, which initiates the vulcanization process. The curing time depends on the part thickness and the specific LSR grade used.
Other Considerations
Proper Bonding Between Substrate and LSR: When overmolding LSR onto a substrate, ensure proper bonding between the two materials. Surface treatment, primer application, or mechanical interlocking may be necessary for optimal adhesion.
Dimensional Variations Due to Curing and Material Shrinkage: LSR parts may experience dimensional changes during the curing process and due to material shrinkage. It's important to account for these variations in the mold design and to work closely with your LSR supplier to minimize their impact.
Draft Angles and Undercut Reduction for Easy Ejection: While LSR allows for more flexibility in draft angles and undercuts compared to thermoplastics, it's still good practice to incorporate sufficient draft angles and minimize undercuts for easier part ejection. Understanding injection molding lifter design can be helpful in managing undercuts.
Texture Selection Based on Functional Requirements and Aesthetics: The surface texture of LSR parts can be customized based on functional requirements (e.g., slip resistance, sealing properties) and aesthetic preferences. Discuss texture options with your LSR supplier to find the best fit for your application.
Optimal Mold Design: Proper mold design is crucial for LSR injection molding. This includes optimal gate placement, adequate venting, and efficient cooling channel design. Collaborate with experienced mold designers and LSR suppliers to ensure the best possible mold design for your project. Understanding the different parts of an injection mold and the role of the injection mold sprue can help in optimizing the mold design.
| Consideration | Description |
| Part Design Rules | Simplified design requirements, flexibility in ejector pin location and draft angles, ability to have protruding undercut areas, importance of proper sealing at the parting line |
| Metering and Mixing | Precise metering and mixing of two-part LSR system, ensuring homogeneous mixture |
| Working Principle | Injection into heated mold for curing, vulcanization process, curing time depends on part thickness and LSR grade |
| Bonding | Proper bonding between substrate and LSR, surface treatment, primer application, or mechanical interlocking |
| Dimensional Variations | Account for dimensional changes during curing and material shrinkage in mold design |
| Draft Angles and Undercuts | Incorporate sufficient draft angles and minimize undercuts for easier part ejection |
| Texture Selection | Customize surface texture based on functional requirements and aesthetic preferences |
| Optimal Mold Design | Collaborate with experienced mold designers and LSR suppliers for optimal gate placement, venting, and cooling channel design |
Equipment for LSR Injection Molding
To achieve high-quality Liquid Silicone Rubber (LSR) injection molded parts, you need the right equipment. Let's take a closer look at the essential machinery and automation involved in the LSR injection molding process.
Essential Machinery
At the heart of the LSR injection molding process is the injection machine. Modern injection molding machines are designed to handle the unique properties of LSR. The machine consists of several key components:
Injectors: These devices pressurize the liquid silicone, helping to inject it into the pumping section of the machine. Pressure and injection rates can be adjusted according to the specific requirements of the project.
Metering Units: The metering unit is responsible for pumping the two main liquid components: the base-forming silicone and the catalyst. It ensures that these substances are released simultaneously and maintain a consistent ratio.
Mixers: After the materials exit the metering units, they are combined in a static or dynamic mixer. This mixing process is crucial for creating a homogeneous mixture before it's injected into the mold.
Molds: The mold is where the magic happens. It gives the LSR part its final shape. Molds for LSR injection molding are typically made from hardened steel to withstand the high temperatures and pressures involved in the process. Understanding the different parts of an injection mold is crucial for optimal mold design.
Precision is paramount in the metering and mixing stages. The two components must be mixed in a precise 1:1 ratio to ensure consistent part properties and optimal curing. This is a critical part of the overall injection molding process.
Automation in LSR Injection Molding
Automation plays a significant role in modern LSR injection molding. Many manufacturers integrate robotics and automated systems into their production lines. Here's why:
Reduced Manual Labor: Automated systems can handle tasks such as part removal, trimming, and packaging. This reduces the need for manual labor, increasing efficiency and productivity.
Improved Production Safety: Automation minimizes the need for human interaction with hot molds and materials. This greatly improves safety in the production environment, reducing the risk of burns and other injuries.
Consistent Quality: Automated systems perform tasks with a high degree of precision and repeatability. This helps to maintain consistent part quality throughout the production run.
Faster Cycle Times: By streamlining the production process and reducing manual intervention, automation can significantly decrease cycle times. This means more parts can be produced in less time, boosting overall output.
LSR Injection Molding vs. Compression Molding
When it comes to manufacturing silicone rubber parts, two main methods are often considered: LSR injection molding and compression molding. While both processes have their merits, LSR injection molding offers several advantages over traditional compression molding. Let's explore these differences in more detail.
Compression molding involves placing uncured silicone rubber into an open mold cavity, which is then closed and compressed under heat and pressure until the material cures. This process has been widely used for decades but has some limitations:
Why LSR Injection Molding is More Efficient
LSR injection molding, on the other hand, offers a more efficient alternative. Here's why:
Shorter Cycle Times: LSR injection molding has significantly shorter cycle times compared to compression molding. The material is injected into a closed mold at high pressure, allowing for faster filling and curing. This is a key advantage of the injection molding process.
Faster Curing Process: The heat-activated curing process in LSR injection molding is much quicker than compression molding. This allows for higher production rates and reduced lead times.
Lower Production Costs: For high-volume production, LSR injection molding offers lower costs per part. The automation and efficiency of the process, facilitated by advanced injection molding machines, help to reduce overall production expenses.
Flash-Free Tooling and Superior Quality
Another key advantage of LSR injection molding is its ability to produce flash-free parts with superior quality. Let's take a closer look:
Minimized Flashing: LSR injection molds are designed with precise tolerances and advanced gating systems. This helps to minimize flashing, reducing the need for post-processing and trimming. Understanding the different parts of an injection mold is crucial for achieving this precision.
Reduced Waste: Compression molding often requires excess material to ensure complete filling of the mold cavity. This excess material, known as flash, is essentially wasted. LSR injection molding, with its precise metering and closed-mold process, significantly reduces material waste.
Consistent Quality: The automated nature of LSR injection molding ensures consistent part quality throughout the production run. Parts have uniform dimensions, surface finish, and mechanical properties.
| Factor | LSR Injection Molding | Compression Molding |
| Cycle Times | Shorter | Longer |
| Curing Process | Faster | Slower |
| Production Costs (High Volume) | Lower | Higher |
| Flashing | Minimized | More Common |
| Material Waste | Low | High |
| Part Quality Consistency | High | Lower |
Quality Control in LSR Injection Molding
When it comes to Liquid Silicone Rubber (LSR) injection molding, quality control is of utmost importance. Manufacturers must adhere to strict quality standards to ensure that the parts they produce meet the required specifications and perform as intended. This is especially crucial when dealing with injection molding defects. Let's explore some key aspects of quality control in LSR injection molding.
Importance of ISO Certifications (ISO 9001, ISO 13485, IATF 16949)
ISO certifications play a crucial role in ensuring that LSR injection molding processes comply with industry standards. Here are some of the most important certifications:
ISO 9001: This certification sets out the requirements for a quality management system. It helps organizations ensure that they meet customer and regulatory requirements consistently.
ISO 13485: This certification is specific to the medical device industry. It ensures that manufacturers consistently meet customer and regulatory requirements applicable to medical devices.
IATF 16949: This certification is specific to the automotive industry. It defines the quality management system requirements for automotive production and relevant service parts organizations.
By obtaining these certifications, LSR injection molding manufacturers demonstrate their commitment to quality and compliance with industry standards. This is particularly important for parts used in medical, automotive, and industrial applications, where safety and reliability are paramount.
Early Quality Planning and Material Testing
To ensure the highest quality parts, LSR injection molding manufacturers must engage in early quality planning and material testing. This involves several key steps:
Advanced Quality Planning: Manufacturers work closely with customers to understand their requirements and develop comprehensive quality plans. This includes creating control plans, defining inspection criteria, and establishing quality metrics.
Material Testing: Before production begins, the LSR material is thoroughly tested to ensure it meets the required specifications. This may include tests for durometer hardness, tensile strength, elongation, and other properties.
Visual Inspections and Metrology: Throughout the production process, parts are visually inspected for defects such as flash, bubbles, or inconsistencies. Metrology equipment, such as coordinate measuring machines (CMMs), is used to verify that parts meet dimensional requirements.
Prototyping and Clinical Trial Testing
Prototyping and clinical trial testing are essential steps in the LSR injection molding process, particularly for medical device applications. Here's why:
Design Validation: Prototypes allow manufacturers to test the design of the part before committing to mass production. They can identify potential issues with the design, such as difficulties in demolding or inconsistent wall thickness.
Material Performance: Prototypes also provide an opportunity to test the performance of the LSR material in the intended application. This may include tests for biocompatibility, chemical resistance, or other properties.
Clinical Trials: For medical device applications, prototypes are often used in clinical trials to evaluate the safety and effectiveness of the device. This is a critical step in obtaining regulatory approval and bringing the product to market.
| Quality Control Aspect | Importance |
| ISO Certifications | Ensures compliance with industry standards for medical, automotive, and industrial applications |
| Early Quality Planning | Develops comprehensive quality plans, control plans, and inspection criteria |
| Material Testing | Verifies that LSR material meets required specifications |
| Visual Inspections and Metrology | Identifies defects and verifies dimensional accuracy |
| Prototyping | Validates design and material performance before mass production |
| Clinical Trial Testing | Evaluates safety and effectiveness of medical devices |
By prioritizing quality control throughout the LSR injection molding process, manufacturers can ensure that they consistently produce high-quality parts that meet customer requirements and industry standards.
Summary
In summary, Liquid Silicone Rubber (LSR) injection molding offers numerous advantages, from high precision to durability and versatility. It’s ideal for producing complex, durable components across industries. Choosing the right manufacturing partner is crucial for ensuring quality and consistency in LSR projects. As demand for biocompatible, high-performance materials grows, the future of LSR injection molding looks bright, with expanding applications in medical, automotive, and consumer products. With its unmatched flexibility and performance, LSR will continue to play a key role in innovative manufacturing solutions.
Frequently Asked Questions About Liquid Silicone Rubber Injection Molding
Q: What is the difference between liquid silicone rubber and high-consistency rubber?
A: LSR is liquid, easier to mold, while HCR is solid and requires compression molding.
Q: How long does the LSR injection molding process typically take?
A: The LSR injection molding cycle can take from 30 seconds to a few minutes.
Q: Can LSR be used for overmolding applications?
A: Yes, LSR is ideal for overmolding, bonding well with other substrates without primers.
Q: How does LSR compare to other elastomers in terms of performance and cost?
A: LSR offers better biocompatibility, temperature resistance, and durability but may have higher initial costs.
Q: What industries benefit the most from LSR injection molding?
A: Medical, automotive, consumer products, and electronics industries benefit most from LSR injection molding.
