Injection molding shapes the world around us, creating everything from toys to car parts. But how do we ensure precision and quality in these products? Enter the concept of mold shut-offs. Mold shut-offs are crucial for controlling the flow of materials, preventing leaks, and ensuring a flawless finish. In this post, you'll learn why mold shut-offs are essential and explore key design considerations to optimize your injection molding process.
What is Mold Shut-off?
Detailed explanation of mold shut-off
Mold shut-off is a crucial design element in injection molding. It allows engineers to create intricate part features without the need for additional side-actions or cams.

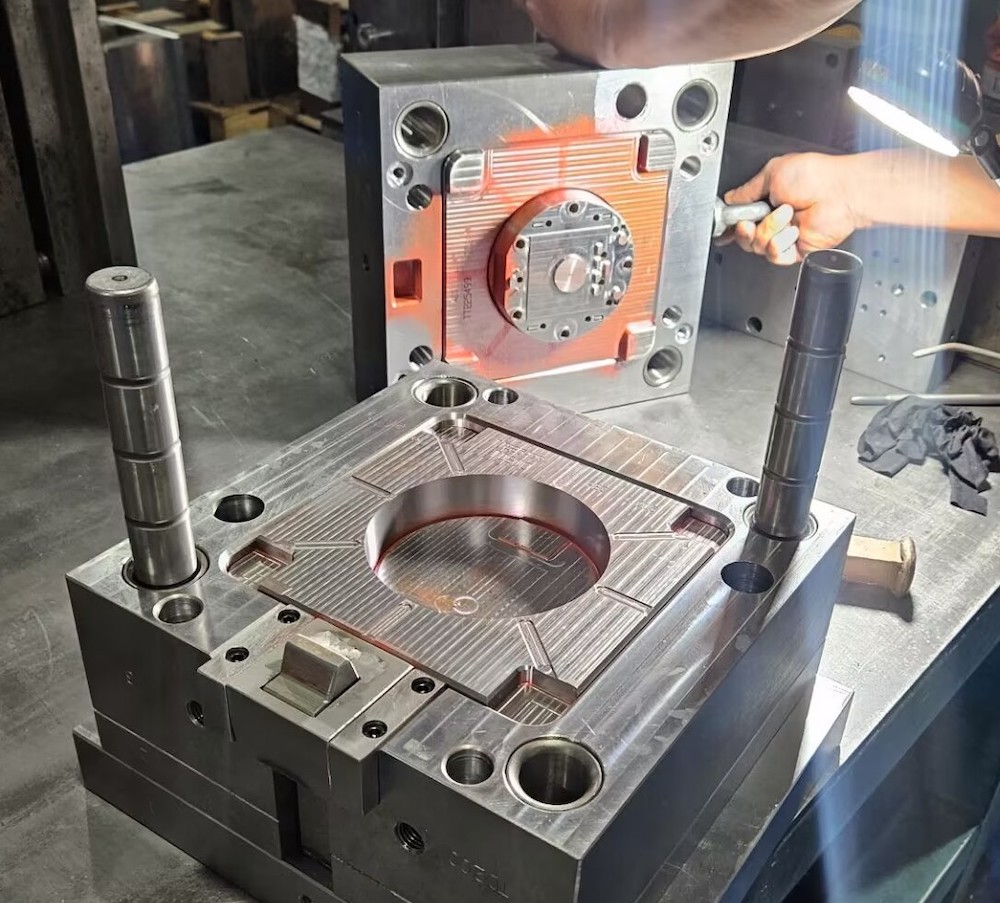

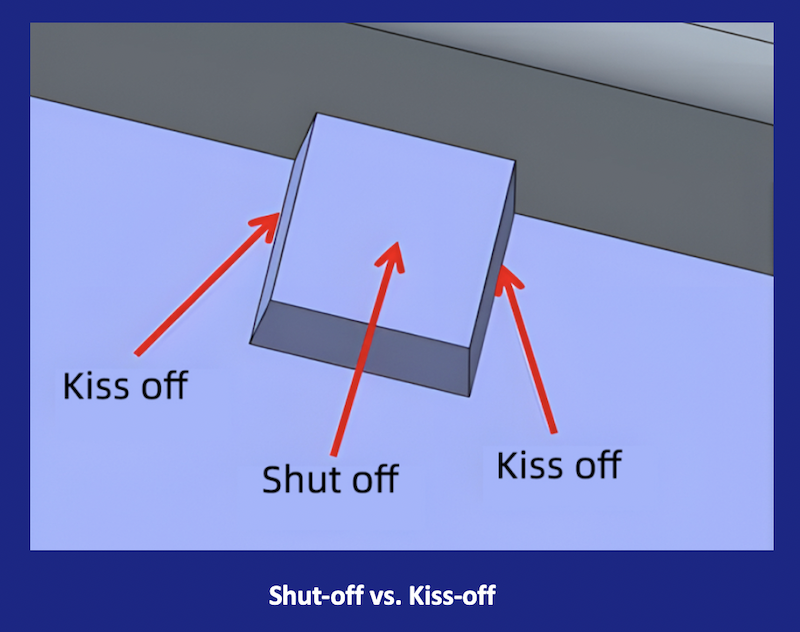

Shut-offs are formed when the faces of the mold slide past each other until they seal, creating a hole or feature in the part. This seal prevents plastic from sneaking past during the molding process.
Role of mold shut-off in injection molding
Shut-offs play a vital role in creating complex geometries in injection molded parts. They enable designers to solve challenging tooling and design issues using drafted walls that seal against each other.
By eliminating the need for post-molding machining or removing functional geometry, shut-offs streamline the production process. They also reduce the overall cost of the mold.
Types of part features that can be created using mold shut-off
Mold shut-offs can create a variety of part features in straight-pull molds, including:
Holes: Shut-offs can form holes in the walls of a part, such as a door in a box-like shape. The pad forming the hole seals against the vertical wall of the cavity.
Hooks: Undercuts and snap features, which typically require pickout inserts or lifter mechanisms, can be created using pass-through cores. One face of the core forms the inside leg of the hook, while the other faces create shut-offs against the mating sides in the pocket.
Long through holes: Segmented troughs on both sides of the mold can create a series of shut-offs that form a through hole across an entire part. This technique works well for hinges, bolt holes, pivot pins, and more.
Why Mold Shut-off is Crucial in Injection Molding
Mold shut-off plays a vital role in injection molding. It's not just a design element; it's a game-changer. Here's why:
| Benefit | Description |
| Part Precision | Ensures accurate part geometry |
| Waste Reduction | Prevents material leakage |
| Mold Durability | Distributes clamping force evenly |
| Cost-Effectiveness | Streamlines production process |
In a nutshell, mold shut-off is the unsung hero of injection molding. It's the secret ingredient that ensures your parts are flawless, your molds are long-lasting, and your production is efficient. Can you imagine a world without it? We can't either!
Types of Mold Shut-off Angles
When it comes to mold shut-offs, angles are everything. Let's dive into the four main types and see what makes each one special.
Flat Shut-off Angle
The flat shut-off angle is the simplest of the bunch. It creates a flat surface, ensuring a snug seal between the core and cavity.
Advantages:
Use cases:
Wipes Shut-off Angle
The wipes shut-off angle adds a touch of flair to the molding process. It employs a wiping motion during closure, actively contributing to a spotless surface finish.
Advantages:
Reduces the risk of imperfections
Creates parts with a superior finish
Adds elegance to shut-off design
Use cases:
Saddles Shut-off Angle
The saddles shut-off angle is the ultimate problem-solver. It excels at creating complex part features without the need for side actions.
Advantages:
Enables intricate geometries
Eliminates the need for additional mechanisms
Offers design flexibility
Use cases:
Parts with holes, hooks, or long through-holes
Applications requiring creative design solutions
Radiused Saddle Shut-off Angle
The radiused saddle shut-off angle takes things up a notch. With its curved edges, it enhances sealing capabilities and promotes a smoother molding process.
Advantages:
Improves sealing performance
Minimizes wear and tear on the mold
Promotes longevity and durability
Use cases:
No matter which angle you choose, remember: the right shut-off can make all the difference in your injection molding success. So, pick wisely and let your designs shine!
Design Considerations for Mold Shut-offs
Designing mold shut-offs is both an art and a science. Let's explore some key considerations to ensure your shut-offs are top-notch.
Ensuring Proper Draft Angles
Draft angles are the unsung heroes of shut-off design. They prevent collisions between the core and cavity during mold closure.
Importance of a minimum 3-degree draft angle: The golden rule is simple: always aim for a draft angle greater than 3 degrees. This magic number guarantees minimal misalignment during closure.
How to determine the appropriate draft angle for different parts: Consider the complexity of your part geometry. Intricate designs may require higher draft angles for seamless mold operation.
Strategies to Reduce Peeling
Peeling can be a designer's nightmare, but fear not! We've got some tricks up our sleeves.
Recommendations for interference fit: Maintain an interference fit of 0.002 to 0.004 inches (0.050 to 0.101 mm). This sweet spot depends on cosmetic needs and substrate flexibility.
Optimal hardness for shut-off steel: Heat treat your shut-off steel to a minimum of 54 Rockwell hardness. This ensures durability and longevity.
Concealing TPE edges and pre-drying materials: Hide those TPE edges from prying eyes! Pre-dry hygroscopic substrates and TPE pellets to avoid porous surfaces near the substrate interface.
Using inserts in shut-off designs: Where appropriate, employ shut-offs as inserts. This aids in downstream mold maintenance and allows for design flexibility.
Avoiding Common Pitfalls
Don't let these common mistakes trip you up:
Problems with rounded shut-offs: Steer clear of rounded or radiused shut-offs. They can compromise the precision of your shut-off mechanism.
Issues with elevated TPE geometry: Avoid designs where TPE geometry sits high above the substrate, like a cliff wall. It's a recipe for molding challenges.
Consequences of direct placement in the mold base: Refrain from placing shut-offs directly in the mold base. It can impact the overall functionality and maintenance of your mold.
Importance of a clear shut-off strategy: Always develop a clear shut-off strategy before building your tool. A little planning goes a long way!
Proper vent placement to avoid flashing: Keep vents away from shut-off edges. Placing them too close can encourage flashing and compromise part quality.
| Consideration | Recommendation |
| Draft Angle | Minimum 3 degrees |
| Interference Fit | 0.002 to 0.004 inches |
| Shut-off Steel Hardness | Minimum 54 Rockwell |
| Vent Placement | Away from shut-off edges |
Design Examples and Applications
Let's dive into some real-world examples of how mold shut-offs can revolutionize your injection molding game.
Through hole across a wide part
Imagine you need a through hole across a 4-inch wide part. Side-action pull-length limitations? No problem! Mold shut-offs to the rescue.
Segmented troughs on A-side and B-side: By creating segmented troughs on both sides of the mold, you can form a series of shut-offs. These shut-offs create a through hole across the entire part.
Ideal for hinges, bolt holes, pivot pins, etc.: This technique works wonders for creating hinges, bolt holes, pivot pins, and more. It's a creative solution that eliminates the need for additional actions.
Hooks and snap features
Undercuts and snap features? They're no match for the power of mold shut-offs.
Pass-through core: A pass-through core, like a square standing block on one side of the mold, mates with a pocket on the opposite side. One face forms the inside leg of the hook, while the drafted faces create shut-offs against the mating sides.
Eliminates the need for pickout inserts or lifter mechanisms: Say goodbye to costly pickout inserts and lifter mechanisms. With mold shut-offs, you can create hooks and snaps without the extra hassle.
Complex part features
Mold shut-offs are the ultimate problem-solvers when it comes to complex part features.
Clip part example: Take a look at this clip part. It's just a small section of a much larger, intricate component. The space between the clip and the pull-through core? That's where the shut-off magic happens.
Utilization of space between clip and pull-through core: By leveraging the space between the clip and the pull-through core, designers can create shut-offs that enable complex geometries. It's a testament to the versatility of this technique.
| Example | Benefit |
| Through hole across a wide part | Eliminates the need for additional actions |
| Hooks and snap features | Reduces cost and complexity |
| Complex part features | Enables intricate geometries |
Designing Mold Shut-off for Thermoplastic Elastomers (TPE)
When it comes to molding thermoplastic elastomers (TPE), shut-off design is critical. Let's explore why and how to optimize it.
Importance of proper shut-off design for TPE
Proper shut-off design is the key to success when working with TPE. Here's why:
Controlling TPE flow: A well-designed shut-off allows you to control the flow of TPE with precision. It ensures that the material fills the cavity exactly as intended, creating parts with perfect geometry.
Preventing edge flash: No one wants unsightly edge flash ruining their TPE parts. A proper shut-off design prevents this by creating a tight seal along the parting line.
Strategies to reduce peeling in shut-off design
Peeling can be a frustrating issue with TPE, but these strategies can help:
Interference fit: Maintain an interference fit of 0.002 to 0.004 inches (0.050 to 0.101 mm). This range provides the optimal balance between cosmetic needs and substrate flexibility.
Heat treating shut-off steel: Don't skimp on heat treatment! Ensure your shut-off steel is heat treated to a minimum of 54 Rockwell hardness. This enhances durability and longevity.
Concealing TPE edge: Get creative with your substrate edge design. Consider ways to "hide" the TPE edge from the consumer's view. Out of sight, out of mind!
Pre-drying materials: Moisture is the enemy of TPE. Pre-dry hygroscopic substrates and TPE pellets to avoid porous surfaces near the substrate interface.
Employing inserts: Where appropriate, use shut-offs as inserts. This approach simplifies downstream mold maintenance and provides flexibility for design modifications.
Pitfalls to avoid in shut-off design
Steer clear of these common shut-off design pitfalls:
Rounded shut-offs: Resist the temptation to use rounded or radiused shut-offs. They may seem appealing, but they can compromise the precision of your shut-off mechanism.
Elevated TPE geometry: Avoid component designs where the TPE geometry sits significantly above the substrate, like a cliff wall. These designs can lead to challenges in achieving a proper shut-off.
Direct placement in mold base: Placing shut-offs directly in the mold base? Think again! This approach can negatively impact the functionality and maintenance of your mold.
Lack of a clear shut-off strategy: Don't start building your tool without a well-defined shut-off strategy. A little planning goes a long way in preventing headaches down the road.
Improper vent placement: Keep vents away from shut-off edges. Placing them too close can encourage flashing, compromising the quality of your TPE parts.
| Do | Don't |
| Maintain interference fit | Use rounded shut-offs |
| Heat treat shut-off steel | Design elevated TPE geometry |
| Conceal TPE edge | Place shut-offs directly in mold base |
| Pre-dry materials | Neglect shut-off strategy |
| Employ inserts | Place vents near shut-off edges |
Fundamental Methods for Locking TPE to Substrate
Chemical adhesion
Chemical adhesion creates a strong bond between TPE and the substrate. It ensures the TPE sticks firmly, providing a reliable connection. This method enhances the overall integrity of the molded part.
Mechanical design techniques
Mechanical design techniques involve creating interlocks and intricate geometries. These designs enhance the TPE's adhesion to the substrate. This method improves component stability and performance.
Interlocks and their benefits
Interlocks are powerful tools for locking TPE to the substrate. They provide several advantages:
Improved component abrasion resistanceInterlocks increase the part's resistance to wear and tear. This ensures the components last longer and perform better under stress.
Multiple location lockingInterlocks can be used across various points on the substrate. This multi-location locking ensures a robust and secure attachment, preventing any part separation during use.
Conclusion
Mold shut-off is vital in injection mold design. It ensures precision, prevents leaks, and enhances part quality. Proper design considerations, like correct angles and fit, are crucial. These practices reduce wear and improve efficiency. Designers and engineers should leverage mold shut-off. It allows for creative and innovative solutions in complex parts. Embrace these techniques to optimize your molding process. Ensure high-quality, durable, and reliable products every time.
