Have you ever wondered how complex plastic parts are made? Injection molding is the key. Lifter design is crucial in this process. It's essential for creating intricate shapes and undercuts in molded parts. In this post, you'll learn about the importance of lifter design, its benefits, and how it enhances manufacturing efficiency. This article is perfect for engineers, designers, and anyone interested in manufacturing.
Injection molding lifters are essential components that play a crucial role in creating complex and intricate plastic parts. They are mechanical devices incorporated into the mold design to facilitate the ejection of molded products with undercuts or intricate geometries.

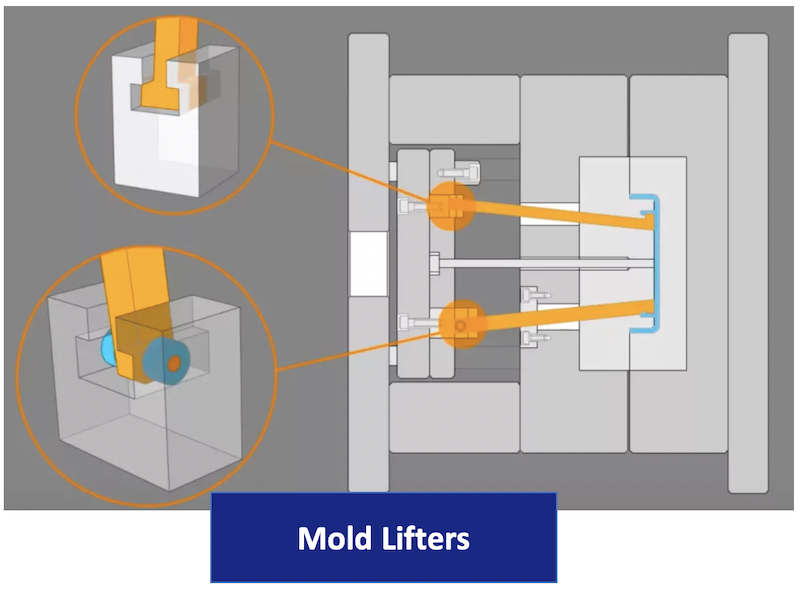

Lifters are strategically placed within the mold cavity to move perpendicular to the direction of the mold opening. As the mold opens, they slide and pull the cavity steel away from the undercuts in the die, allowing for a smooth and efficient ejection process.
These ingenious devices enable the creation of parts with challenging designs that would otherwise be impossible to mold using conventional methods. By providing additional flexibility in the molding process, lifters expand the possibilities for product innovation and creativity.
Injection molding lifters come in two main varieties: integral and non-integral. The choice between these types depends on the specific requirements of the molded part and the overall mold design.
Integral lifters
Integral lifters are characterized by their compact and robust construction. The body and forming parts are designed as a single unit, making them ideal for molding larger parts that demand high strength and durability.
Non-integral lifters
Non-integral lifters consist of separate body and forming components. This modular design allows for greater flexibility and ease of maintenance, as individual parts can be replaced without affecting the entire lifter assembly.
To function effectively, an injection molding lifter relies on two primary components: the lifter body and the forming parts.
Lifter body
The lifter body serves as the foundation of the lifter assembly. It is typically made from high-strength materials like hardened steel to withstand the forces and pressures encountered during the injection molding process.
Forming parts
The forming parts are the active components of the lifter that directly interact with the molded product. They are responsible for shaping the undercuts and intricate features of the part during the molding process and assisting in its clean ejection from the mold.
Component | Function |
---|---|
Lifter Body | Provides structural support and houses mechanisms |
Forming Parts | Shapes undercuts and assists in part ejection |
Lifters are cleverly designed to move in a perpendicular direction to the mold opening. As the mold begins to open, the lifter slides along an angled path, pulling the cavity steel away from the undercuts in the die. This ingenious mechanism allows the molded part to be released without any damage or distortion.
When it comes to ejecting molded parts, lifters play a crucial role. They provide the necessary clearance for the part to be smoothly removed from the mold cavity. Without lifters, parts with undercuts or intricate geometries would be virtually impossible to eject without causing damage.
Lifters work in harmony with other ejection components, such as ejector pins and plates, to ensure a seamless and efficient ejection process. It's a delicate dance that requires precise coordination and timing.
Locating block
The locating block is a vital component that houses the lifter mechanism. It provides a secure and stable foundation for the lifter to operate within the mold. The block is carefully designed to allow the lifter to move smoothly and accurately during the ejection process.
Ejector plates
Ejector plates are the powerhouse behind the ejection process. They provide the necessary force to push the molded part out of the mold cavity. Lifters work in concert with the ejector plates, moving in perfect synchronization to ensure a clean and efficient ejection.
The angle and stroke length of the lifter are critical factors in its performance. The lifter angle determines the path along which the lifter travels during the ejection process. It must be carefully calculated to ensure that the lifter provides sufficient clearance for the molded part.
Angle (degrees) | Stroke Length (mm) | Clearance (mm) |
---|---|---|
5 | 20 | 1.7 |
10 | 20 | 3.5 |
15 | 20 | 5.2 |
The stroke length, on the other hand, determines the distance the lifter travels during the ejection process. It must be long enough to completely clear the undercuts and allow the part to be ejected without any interference.
Designing lifters for injection molding is not a task for the faint-hearted. It requires a deep understanding of the various requirements and standards that ensure optimal performance and longevity. In this section, we'll explore the key considerations that every injection molding professional should keep in mind when designing lifters.
Minimum draft angle for shut-off surfaces
Shut-off surfaces are critical in preventing leakage and flash formation. To ensure proper sealing, a minimum draft angle of 3 degrees must be maintained in the direction of slide travel. This allows for smooth operation and prevents any interference during the molding process.
Two-angle pin requirements for slide designs
When it comes to slide designs, two-angle pins are a must-have for any lifter exceeding 7 inches in length. These pins provide the necessary support and stability to prevent any deflection or misalignment during the molding process.
Angle difference between angle pin and back wedge
The angle difference between the angle pin and the back wedge is another crucial factor to consider. A minimum difference of 3 degrees must be maintained to ensure proper functioning of the lifter mechanism.
Back wedge design considerations
The back wedge is responsible for resisting the injection pressure and supporting the entire molding surface. It must be designed to withstand the forces exerted during the molding process. For large molding surfaces, a double-wedge design may be necessary to provide adequate support.
Clearance between slide detail and molded part
Proper clearance between the slide detail and the molded part is essential for smooth ejection. A minimum clearance of 1.2 inches must be maintained when the slide is in the back position. This prevents any interference or damage to the molded part during ejection.
Clearance (inches) | Slide Position |
---|---|
1.2 | Back |
0.8 | Middle |
0.4 | Forward |
Ejection placement guidelines
The placement of ejection components is critical for proper part removal. As a general rule, no ejection should be positioned beneath the slide detail unless specifically requested by the customer. If ejection is required beneath the slide, switches must be limited to the maximum movements of the ejector.
Deep rib detail venting
Deep rib details can pose challenges in terms of venting and air entrapment. To ensure efficient venting, every deep rib detail should be sub-inserted. This allows for proper air evacuation and prevents any defects in the molded part.
Slide face and spring requirements
Slide faces that engage with the cavity in the direction of slide travel must be equipped with face-loaded or external springs. This prevents any galling or wear on the slide face, ensuring smooth and reliable operation.
Material hardness differences
The hardness difference between the slide material and the gib material is another important consideration. A minimum hardness difference of 6 points (RcC) must be maintained to prevent any wear or damage to the lifter components.
Slide foot length proportions
The length of the slide foot plays a crucial role in the stability and performance of the lifter. As a general rule, the total length of the slide foot should be 50% of the overall height of the entire slide. This ensures proper balance and prevents any tipping or misalignment during operation.
Designing injection molding lifters is a complex process that requires careful planning and execution. In this section, we'll walk you through the step-by-step process of designing lifters that are efficient, reliable, and built to last.
Importance of analyzing the part design.
Before starting the lifter design process, it's crucial to thoroughly analyze the part design. This step lays the foundation for the entire design process and ensures that the lifter will function as intended.
Key considerations in part geometry and tolerances.
Pay close attention to the part geometry, including any undercuts, holes, or complex features. These elements will dictate the placement and design of the lifter. Additionally, consider the tolerances required for the part, as this will impact the precision of the lifter mechanism.
How to determine the optimal position and direction for the lifter.
The position and direction of the lifter are critical factors in its performance. To determine the optimal position, consider the part geometry, mold structure, and ejection requirements. The lifter should be placed in a location that allows for smooth and efficient ejection of the part.
Factors affecting position and direction.
Other factors to consider include the size and shape of the mold, the location of the parting line, and any adjacent components that may interfere with the lifter's movement. Take all of these factors into account when determining the position and direction of the lifter.
Overview of different lifter mechanisms (cam, hydraulic, mechanical).
There are several types of lifter mechanisms to choose from, each with its own advantages and disadvantages. Cam lifters use a rotating cam to actuate the lifter, while hydraulic lifters rely on fluid pressure. Mechanical lifters, on the other hand, use springs or other mechanical means to move the lifter.
How to choose the right mechanism for your design.
The choice of lifter mechanism depends on several factors, including the size and complexity of the part, the required force and speed of the lifter, and the available space in the mold. Consider the pros and cons of each mechanism and select the one that best suits your specific design requirements.
How to calculate the size and shape of the lifter.
The size and shape of the lifter are critical factors in its performance. To calculate the appropriate size, consider the size of the part, the required stroke length, and the available space in the mold. The shape of the lifter should be designed to provide adequate support and stability during the molding process.
Considerations for part and mold structure.
The part and mold structure will also impact the size and shape of the lifter. Consider the location of any undercuts or complex features, as well as the overall geometry of the part. The lifter should be designed to accommodate these features without interfering with the molding process.
Steps to design a robust support structure.
Identify the areas of the lifter that will experience the highest stress and load.
Select materials with appropriate strength and durability for the support structure.
Design the support structure to distribute the load evenly and prevent any deformation or failure.
Integrate the support structure seamlessly with the lifter mechanism and mold components.
Material selection and placement considerations.
The material used for the support structure should be strong, rigid, and able to withstand the forces exerted during the molding process. Common materials include steel, aluminum, and high-strength plastics. The placement of the support structure should be carefully considered to ensure optimal performance and minimize any interference with other mold components.
Importance of analyzing the lifter design.
Before proceeding with production, it's essential to analyze the lifter design to identify any potential issues or areas for improvement. This step helps to optimize the design and ensure that the lifter will perform as intended.
Methods and tools for analysis.
There are several methods and tools available for analyzing lifter designs, including:
Finite Element Analysis (FEA): This computer-aided engineering tool simulates the behavior of the lifter under various loads and conditions.
Mold flow analysis: This technique predicts the flow of molten plastic within the mold cavity and identifies any potential issues with the lifter design.
Prototype testing: Physical prototypes can be created to test the functionality and performance of the lifter design in real-world conditions.
Common issues and how to modify the design to address them.
During the analysis phase, several common issues may be identified, such as:
Insufficient support or stability
Interference with other mold components
Inadequate stroke length or force
To address these issues, modifications can be made to the lifter design, such as:
Reinforcing the support structure
Adjusting the position or orientation of the lifter
Increasing the size or changing the shape of the lifter
Steps to implement and test modifications.
Make the necessary changes to the lifter design based on the identified issues.
Re-analyze the modified design to ensure that the issues have been resolved.
Create new prototypes or update existing ones to test the modified design.
Conduct thorough testing to validate the performance of the modified lifter.
Iterate the design if necessary based on the test results.
Overview of the production process.
Once the lifter design has been finalized and tested, it's time to move on to production. The production process typically involves the following steps:
Material selection and procurement
Machining or fabrication of the lifter components
Assembly of the lifter mechanism
Integration with the mold components
Quality control and inspection
Key considerations during production.
During the production process, it's important to maintain tight tolerances and ensure that all components are manufactured to the highest standards. Quality control measures should be in place to identify any defects or issues early in the process. It's also important to consider the lead time and cost of production when planning the manufacturing process.
Methods for testing the lifter (moldflow simulation, prototype molding, etc.).
Before putting the lifter into full production, it's essential to conduct thorough testing to ensure that it performs as intended. Some common testing methods include:
Moldflow simulation: This technique predicts the behavior of the lifter during the molding process and identifies any potential issues.
Prototype molding: Physical prototypes can be created to test the functionality and performance of the lifter in real-world conditions.
Cycle testing: The lifter can be subjected to repeated cycles of operation to assess its durability and reliability over time.
How to interpret test results and make necessary adjustments.
The results of the testing process should be carefully analyzed to identify any issues or areas for improvement. If necessary, adjustments can be made to the lifter design or production process based on the test results. It's important to document all testing procedures and results for future reference and continuous improvement.
Choosing the right material is crucial. Lifters endure high stress and pressure. The material must be strong and durable. It ensures the lifter performs well over time. Poor material choice leads to frequent failures.
Hardened steel 4507 is popular. It's strong and durable. This steel can withstand high pressure. It's used in lifter bodies for its strength. Engineers prefer it for demanding applications.
Steel 738 is another common choice. It offers good balance of strength and flexibility. It's used in various lifter parts. This material is suitable for many molding processes. Its versatility makes it valuable.
Bronze is often used in wear blocks. It has excellent abrasion resistance. Bronze reduces friction between moving parts. It's durable and enhances lifter performance. This material is key for long-lasting lifters.
Lifters face constant abrasion. They must resist wear and tear. Abrasion resistance is vital for longevity. Materials like bronze excel in this area. Strength is equally important. Lifters need to withstand high pressure. Hardened steel provides necessary strength.
Material choice affects performance. Strong materials ensure reliable operation. Abrasion-resistant materials reduce maintenance. They extend the lifter's lifespan. Proper material selection boosts efficiency. It reduces downtime and costs.
Choosing the right materials is key. It enhances lifter performance and durability. Engineers must consider these factors carefully.
Designing the perfect lifter for your injection molding project is no easy feat. It requires a keen eye for detail, a deep understanding of the product geometry, and a willingness to experiment with different design elements. In this section, we'll explore some tips and tricks for optimizing your lifter design to achieve the best possible results.
One of the keys to successful lifter design is tailoring the lifter to the specific geometry of your product. Every product is unique, with its own set of curves, angles, and features. By designing your lifter to accommodate these specific geometries, you can ensure a smooth and efficient ejection process.
Take the time to carefully analyze your product design. Identify any undercuts, deep cavities, or other features that may require special attention. Then, design your lifter to provide the necessary support and clearance for these areas.
Undercuts are one of the most common challenges in injection molding, and they can be particularly tricky when it comes to lifter design. The location and size of the undercuts will have a significant impact on the design of your lifter.
Consider the following factors when designing lifters for products with undercuts:
The depth and angle of the undercut
The distance between the undercut and the ejection surface
The size and shape of the undercut relative to the overall product geometry
By carefully analyzing these factors, you can design a lifter that provides the necessary support and clearance for the undercut, while still allowing for smooth ejection of the product.
Another important consideration in lifter design is the balance between the lifter stroke and the ejector stroke. The lifter stroke refers to the distance that the lifter travels during the ejection process, while the ejector stroke refers to the distance traveled by the ejector pins or plates.
To achieve optimal performance, it's important to balance these two strokes. If the lifter stroke is too short, it may not provide enough clearance for the product to eject smoothly. Conversely, if the ejector stroke is too long, it may cause the product to deform or damage.
Stroke Type | Recommended Distance |
---|---|
Lifter | 10-15mm |
Ejector | 5-10mm |
By carefully balancing the lifter and ejector strokes, you can ensure a smooth and efficient ejection process that minimizes the risk of product damage.
In some cases, incorporating additional ejection features can help to optimize the performance of your lifter. These features can provide additional support and guidance for the product during the ejection process, helping to ensure a smooth and consistent result.
Some common ejection features include:
Ejector pins
Small pins that provide localized support and push the product out of the mold.
Grippers
Mechanical devices that grab and pull the product out of the mold.
Guide posts
Posts that provide guidance and support for the product during ejection.
By incorporating these additional features into your lifter design, you can achieve a more robust and reliable ejection process.
Finally, it's important to consider the long-term durability of your lifter design. Lifters are subject to significant wear and tear during the injection molding process, and over time, this can lead to decreased performance and even failure.
To minimize wear and tear on your lifters, consider the following tips:
Use high-quality materials that are resistant to wear and corrosion.
Incorporate wear-resistant coatings or treatments on critical surfaces.
Design the lifter with generous clearances and radii to reduce stress concentrations.
Regularly inspect and maintain your lifters to identify and address any issues before they become critical.

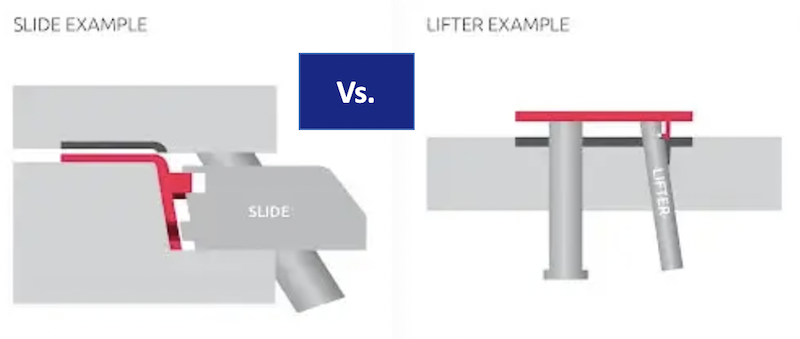

Sliders are common alternatives to lifters. They share similarities but have distinct differences. Sliders move laterally to release undercuts. Unlike lifters, they don't require angled motion. Sliders are simpler to design and use. They fit well in molds with horizontal movement needs.
Similarities and Differences Compared to Lifters
Both sliders and lifters help release complex parts. Lifters move both vertically and horizontally. Sliders mainly move sideways. Lifters handle intricate undercuts better. Sliders are easier to maintain.
Inserts offer another alternative. They simplify the ejection mechanism. Inserts are placed in the mold during injection. They form part of the molded piece. After molding, inserts are removed separately. This process avoids complex lifter movements.
Simplified Ejection Mechanism
Inserts make the ejection process straightforward. They are ejected with the part. Later, inserts are removed manually. This reduces the need for complex mechanisms.
Removing Inserts in a Separate Process
After molding, inserts must be detached. This separate step simplifies the initial ejection. It's useful for parts where integrated lifters are impractical.
Product Design
The product's design influences the choice. Complex designs may need lifters. Simpler designs can use sliders or inserts. Designers must assess each part's needs.
Tooling Capabilities
Tooling capabilities are crucial. Some molds support sliders better. Others are built for inserts or lifters. The tool's design dictates the best alternative.
Cost Considerations
Cost is always a factor. Lifters can be expensive to design and maintain. Sliders and inserts may be cheaper. Engineers must balance performance with budget constraints.
Choosing the right alternative depends on multiple factors. Understanding each option helps in making the best decision.
Well-designed lifters enhance part ejection. They ensure parts are released smoothly. This reduces the risk of damage. Lifters handle complex shapes and undercuts efficiently. Proper design prevents part deformation. Smooth ejection leads to higher quality.
Lifters boost production efficiency. They streamline the molding process. Well-designed lifters reduce cycle times. Faster ejection means more parts per hour. Efficient lifters minimize downtime. This increases overall productivity.
Lifters ensure consistent product quality. They maintain part integrity during ejection. Properly designed lifters prevent defects. Consistent ejection produces uniform parts. High-quality lifters lead to fewer rejects. This enhances customer satisfaction.
Well-designed lifters save costs. They reduce the need for post-processing. Smooth ejection minimizes part damage. Less rework is required. This cuts down on labor and material costs. Efficient lifters lead to significant savings.
We've covered the key points of injection molding lifter design. Lifters help create complex shapes and ensure smooth part ejection. Proper material selection and design are crucial.
Well-designed lifters improve production efficiency. They enhance product quality and reduce costs. Understanding lifter types and their functions is vital.
Proper lifter design ensures successful injection molding. It helps produce high-quality, consistent parts. Consider lifter design in your projects. It will boost efficiency and quality.
Think about how lifters can improve your processes. Investing in good lifter design pays off. Your injection molding projects will benefit greatly.
